The boat we are building is called a Dazcat 1500. The Dazcat 1500 has been expertly designed to adapt to your unique ambitions on the water. Whether you seek effortless relaxation, thrilling adventure, or high-performance sailing the Voyager Trust can provide it for you.
Our Boat
No barriers. No limits. Just the open sea.
Redefining accessible sailing.
Some Facts about the Boat
0%
Wheelchair accessible
0m
Carbon Mast
0m
Length Overall
0sq m
Mainsail area
0
Wheelchair lifts
0
40HP engines
0m
Beam
0sq m
Genoa sail area
Redefining accessible sailing
The boat interior
Detailed Specifications
Click below to find out more about the boat.
Overall measurements
LWL: 14.99m
LOA: 15.75m (Including bowsprit)
BOA: 8m
Draft: Min 1.2m Max 2.2m
Freeboard: 2.1m
Displacement
Estimated Weight Lightship: 11,000kg
Max Weight Loaded: 15,000kg
Sail Area / Displacement Ratio: 24.3
Rig & sails
Rig: 18.5m Carbon Mast with Aramid Rigging
Air Draft: 22m
Main sail area 76m2
Genoa: 51m2
Code 0 Area: 100m2
Construction & Accommodation
Construction: Infused GRP & Foam Composite with Carbon reinforcement
Berths: 8
Headroom Hulls: Max 2m Headroom, Bridge Deck: 2.2m
Steering: Single wheel to cable, with emergency tiller.
Rudders: 2 x rudders and stocks
Keels: Dart Skeg keels
Daggerboards: 2 x Carbon Boards
Power & Tankage
Auxiliary Power: Twin 40hp Yanmar sail-drive
Fuel Tanks: 2 x 193 ltr
Water Tanks: 2 x 269 ltr
Solar Panels: 2-3kw
House Battery: 12 v Lithium battery, 12-18kw
Node Based Electric Switching System
Marine Electrical & Navigation Systems
Accessibility
Model: Dazcat D1500
Designer: Multihull Centre Services Ltd
RCD: CAT A
Coding: Sport or Pleasure Vessel Code (SPVC)
Builder: Multihull Centre Services Ltd
Adventurous SailingAccessible For AllVoyaging Without Limits
Adventurous SailingAccessible For AllVoyaging Without Limits
Adventurous SailingAccessible For AllVoyaging Without Limits
Adventurous SailingAccessible For AllVoyaging Without Limits
Adventurous SailingAccessible For AllVoyaging Without Limits
Adventurous SailingAccessible For AllVoyaging Without Limits
Adventurous SailingAccessible For AllVoyaging Without Limits
Adventurous SailingAccessible For AllVoyaging Without Limits
Adventurous SailingAccessible For AllVoyaging Without Limits
Adventurous SailingAccessible For AllVoyaging Without Limits
Adventurous SailingAccessible For AllVoyaging Without Limits
Adventurous SailingAccessible For AllVoyaging Without Limits
Adventurous SailingAccessible For AllVoyaging Without Limits
Adventurous SailingAccessible For AllVoyaging Without Limits
Adventurous SailingAccessible For AllVoyaging Without Limits
Adventurous SailingAccessible For AllVoyaging Without Limits
Adventurous SailingAccessible For AllVoyaging Without Limits
Adventurous SailingAccessible For AllVoyaging Without Limits
Adventurous SailingAccessible For AllVoyaging Without Limits
Adventurous SailingAccessible For AllVoyaging Without Limits
Creating accessible adventures

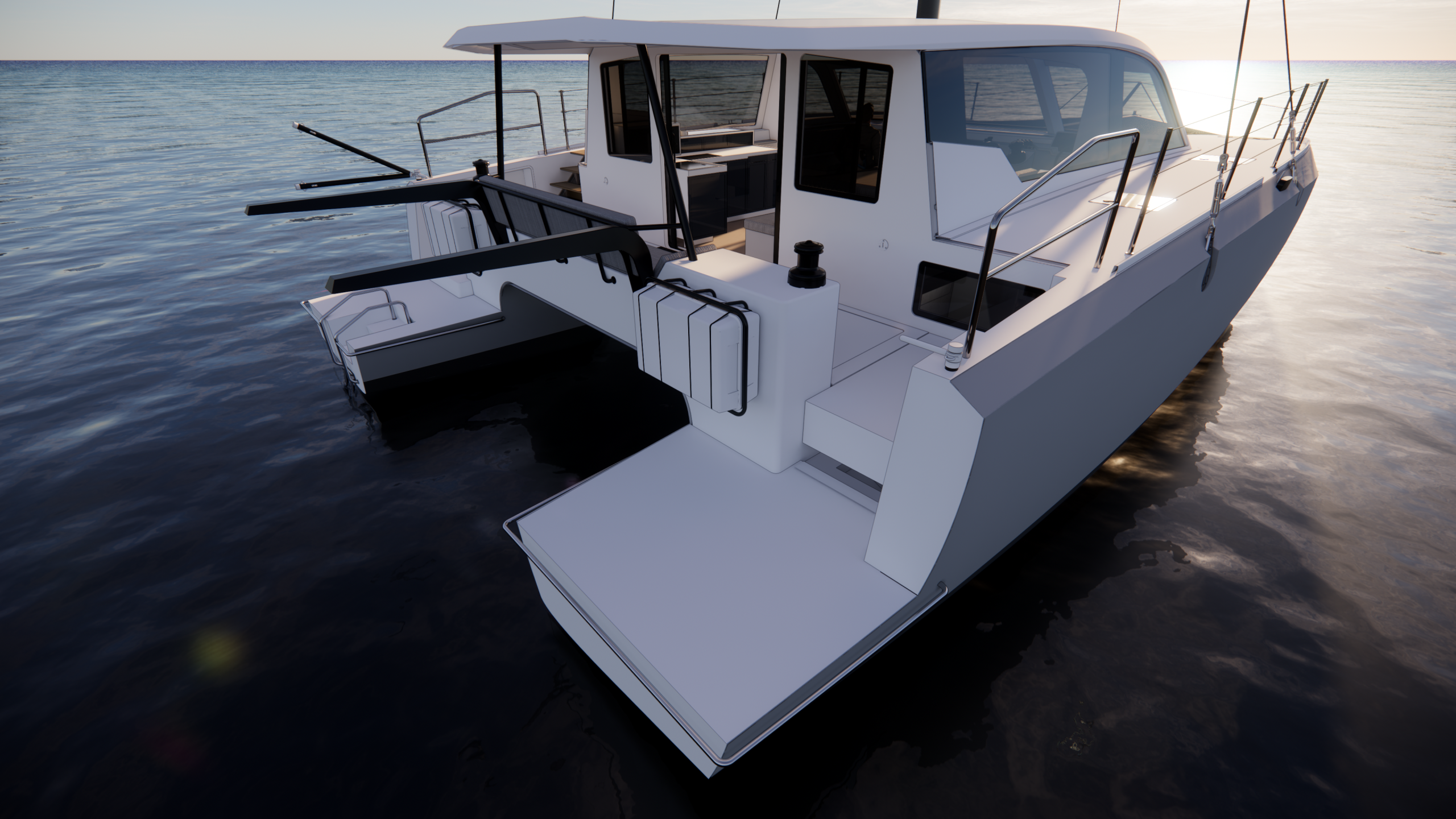

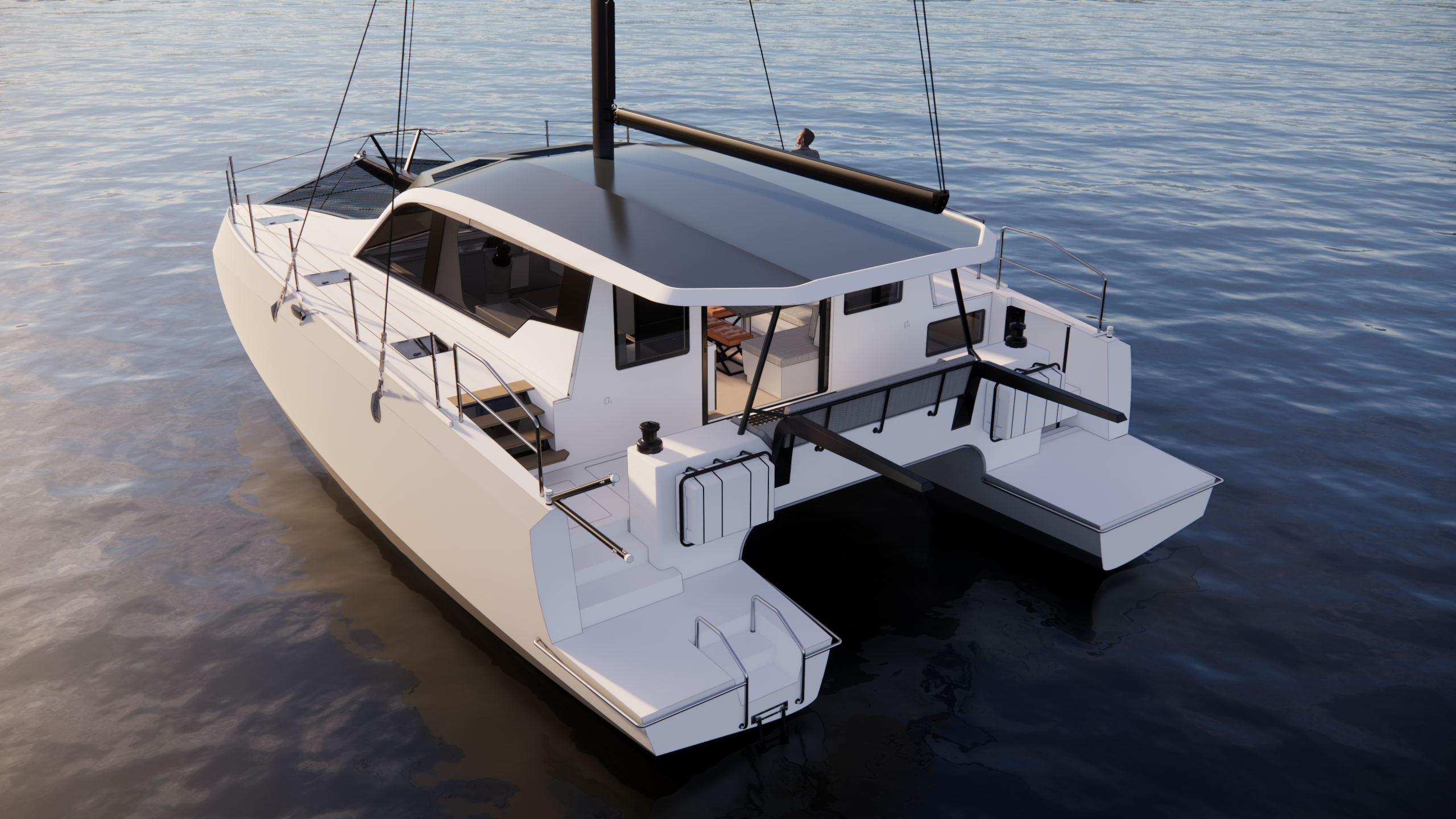

The boat exterior
